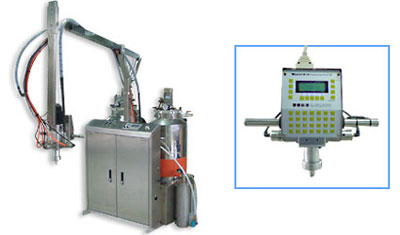

G-480 PU Dispenser

HOME > Product > PU Dispenser > G-480 PU Dispenser

　

　

Material applicable: PU foam, elastomer, gel...etc.
　
　 Shot volume: 60~1000cc, max 7L/min 　
　 Accuracy: +2% 　
　 Tank size: 220L per tank 　
　 　 　
　 Feature& Benefits: 　
　 ●Stainless steel construction, easy to clean and maintenance. 　
　 ●Fixed ratio or Variable ratio design for precise ratio control. 　
　 ●Static or Dynamic mixing valve applied for different material requirements. 　
　 ●Microprocessor controlled. 　
　 ●Interactive memory setting function creates user friendly interface. 　
　 ●Multiple variable shot volume program up to 7 sequences. 　
　 ●Easy shot size and flow rate adjustment 　
　

●Precise gear pumps or progressive cavity pump, supply the material steadily and consistently

 　
　

●Optional material tank heater, agitator, or vacuum degassing unit available.

 　
　 ●Material tank empty warning. 　
　 ●PTC thermal sensor insures temperature of the material tube constant. 　
　 ●Error-protection design, error message display 　
　 　 　
　 　 　
　 Optional Features 　
　

S. Variable Ratio: This model is equipped with variable-ratio feature. Therefore, extra Ac Servo Motor and Amplifier are applied for hardener in order to match the mixture requirement. The mixing ratio is digitally controlled and monitored through control panel. User can select the input figure without any physical adjustment.

 　
　

D. Dynamic mixing valve: a high speed air motor applied for mixture of resin and hardener when the mixing ratio or viscosities are distinct.

 　
　

V. Vacuum Degassing: Vacuum pump is utilized for material tank de-gassing and for vacuum suction refill.

 　
　

R. Recirculation unit: This function would enforce material from auto valve back to material tank when its fillers or tends to settle down or crystallize during idle.

 　
　

A. Auto-refill: This is suitable for user with high frequency of refilling workload. This function is completed by a specially designed pneumatic transfer pump, which can reach to the material ram and pumping liquid to dispenser pressure tanks.

 　
　

P. Variable Pigment Selection: Applicable for 3rd component mixture.

 　
　

M28 / M51: Sub control panel for 28 or 51 sets of memory switch. User can select and switch from one target volume to another.

 　
　 　 　
　
　
